TADES-ARSAN
COUPLINGS WITH ANTI-PULLOUT LOCKING
Technical Specifications – Flexible Couplings
-
Application: For cast/ductile iron, steel, asbestos-cement, PE, and PVC pipes.
-
Standard & Materials: EN 14525; steel or ductile iron body with galvanized/cast-iron anti-pullout clamps.
-
Protection & Sealing: Min. 250 μm epoxy or thermoplastic coating; EPDM gasket suitable for potable water.
-
Pressure Rating: PN10, PN16, PN25.
Materials
PE/PVC
Steel
Ductile
ACC/B+C
ACC/B
ACC/C
PE
Internal diameter (mm)
345:410
390:470
440:530
490:585
620:695
695:815
790:890
895:955
990:1060
Length (mm)
300
320
350
370
400
420
This section details general technical specifications, including length, internal diameter (ID), and material ratings for pipe fittings.
The dimensions shown are for reference only and do not represent the full range. For detailed technical specifications, please contact the supplier.

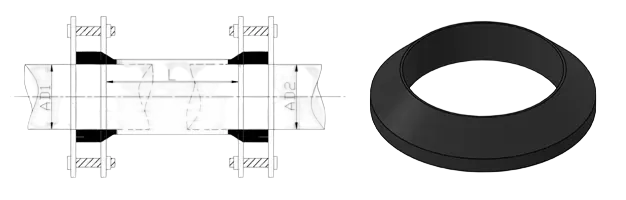

PIPE ADAPTER
Technical Specifications – Pipe Adapters
-
Application: Heavy-duty adapters for connecting pipes of different diameters.
-
Sealing System: One-piece conical EPDM gasket providing secure, leak-resistant sealing.
-
Performance: Uniform tightening increases sealing pressure, ensuring reliable operation under high-pressure conditions.
Dimensional Ranges and Operating Pressure
Large-diameter couplings cover OD 415–935 mm, with a 400 mm body width, 25 mm tolerance range, PN16 working pressure, and M16 threaded fasteners.
The dimensions shown are for reference only and do not represent the full range. For complete technical specifications, please contact the supplier.
Materials of Construction and Structural Components
The casing and flanges are made of ST 37, ST 44, or ST 52 structural steel with epoxy coating, using galvanized grade 8.8 bolts for high strength and corrosion resistance.
Sealing System and Leak-Proof Performance
The sealing system uses a one-piece EPDM sleeve, providing leak-proof performance, compensating tolerances up to 25 mm, and supporting continuous operation at 16 bar.
HDPE PIPES
Technical Specifications – HDPE Gripper Clamp
-
Application: Repair and connection of HDPE/PE100 pipes with anti-pullout mechanical grip.
-
Range & Pressure: DN 63–2000 mm; working pressure PN10, PN16, PN25; test pressure up to PN40.
-
Materials: AISI 304/316 stainless steel or galvanized steel body; EPDM gasket, optional NBR.
Nominal diameter (mm)
125
140
200
250
280
315
350
400
500
600
1000
This section outlines general technical specifications, including nominal diameter, external diameter range and joint width
The dimensions shown are for reference only and do not represent the full range. For complete technical specifications, please contact the supplier.
External Diameter Range(mm)
122-128
137-143
197-203
247-253
277-283
312-318
352-358
397-403
497-503
627-633
997-1003
Joint Width (mm)
120
120
200
200
200
200
200
200
200
200
200
TWO PIECE AND HINGED PIPE COUPLING
Technical Specifications – Flexible Couplings
-
Application: Flexible connection for steel, GRP, HDPE, PVC, ductile/cast iron, ACP, and similar pipes; absorbs vibration and pipe movement.
-
Range & Pressure: DN 26.9–1000 mm; tested up to PN40.
-
Materials & Sealing: AISI 304/316 stainless steel or galvanized AISI 1024 body; dual-channel EPDM/NBR lip gasket with pressure-assisted sealing.
Pipe Outside Diameter and Clamping Ranges
This product line covers pipe outside diameters from 26.9 mm to 1000 mm, with size-specific clamping ranges from 26–28 mm up to 995–1006 mm, ensuring secure and adaptable installation across different pipe sizes.
The dimensions shown are for reference only and do not represent the full range. For complete technical specifications, please contact the supplier.
Nominal Working Pressure Ratings
These couplings are rated for PN20 (20 bar) in smaller diameters from 26.9 to 114.3 mm, while medium and large sizes from 127 to 1000 mm are designed for PN16 (16 bar) operation.
Body Width and Leakage Level Dimensions
Coupling dimensions increase with pipe size, with body width (B) ranging from 50 mm to 500 mm and leakage dimension (C) from 20 mm to 300 mm, ensuring adequate strength and sealing for each application.
AXIAL RESISTANCE COUPLING
Technical Specifications – Heavy-Duty Anchoring Coupling
-
Application: Marine, shipbuilding, and industrial piping with high vibration and mechanical stress.
-
Axial Restraint: Stainless spring-steel gripping teeth prevent pipe pull-out and axial movement.
-
Compatibility: Suitable for various pipe materials, including CuNiFe.
Pipe Outside Diameter (mm)
26.9
38
54
60.3
108
127
180
225
250
315
400
450
500
609.6
This section outlines general technical specifications, including nominal diameter, clamping range and nominal pressure
The dimensions shown are for reference only and do not represent the full range. For complete technical specifications, please contact the supplier.
Clamping Range (mm)
26-28
38-39
52.5-55.5
59-61.5
106.5-110
125-129
178-182
223-227
248-253
314-317
398-402
448-452
498-502
606-613
Nominal pressure (bar)
20
20
20
20
20
16
16
16
16
16
16
16
16
16
