INSPECT & CLEAN

Check that the pipe outside diameter is within the coupling range. Clean the surface and remove dirt, grease, burrs and loose particles.

Digital UI graphic, a simple rectangular button or input field placeholder. Features a clean, minimalist design with neutral gray tones.
ALIGN THE CLOSURES

Align both coupling halves and engage the closing points on both sides. Confirm that the gasket is not pinched or displaced.

COUPLING INSTALLATION GUIDE

Recommended procedure for correct assembly and sealing
MARK & CENTER

Mark the center of the joint or repair area. Position the sealing sleeve evenly without twisting or folding it.

Digital icon illustration of a simple rectangular button or input field. The design is minimalist and clean, suitable for a user interface.

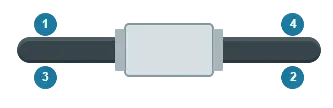

TIGHTEN EVENLY

Tighten the bolts gradually in a cross pattern. Maintain even spacing and apply the manufacturer's recommended torque.

Digital diagram illustration of a rectangle being compressed by two opposing arrows. The clean, minimalist design suggests a concept of physical force, scaling, or mechanical pressure.
POSITION BOTH HALVES

Place the upper and lower coupling bodies around the pipe. Ensure the gasket and gripping rings remain correctly seated.

Digital UI element featuring a simple, light gray rectangular button with rounded corners over a solid black background. Minimalist design for web interface utility.
INSPECT & PRESSURE TEST

Inspect the coupling, gasket position and gripping rings. Pressurize gradually and verify that no leakage is present before service.
